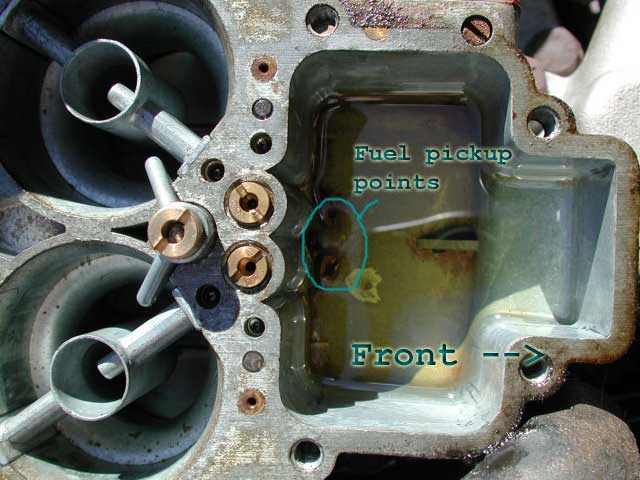

  • This picture shows the float bowl of the carburetor. The front of the car is to the right.

  • You can see that the fuel pickup points in the float bowl are to the rear of the car.

  • Where is the fuel going to go under braking?
