Pertronix Ignitor in a SAAB/Ford V4 Image

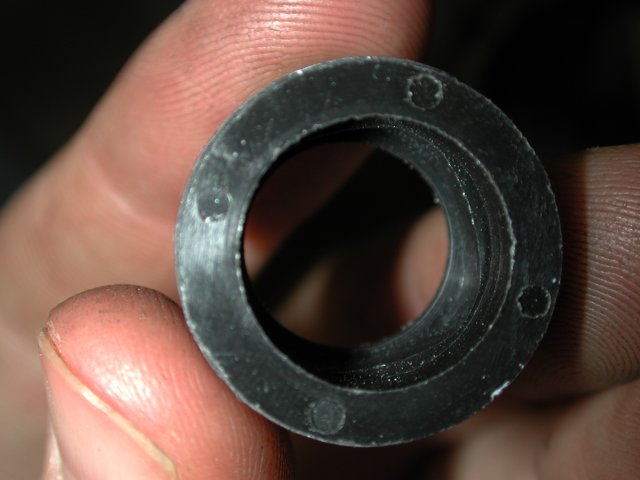

This is the magnet ring. If you look closely you can see that the inner diameter is a rounded off square that matches the cam profile on the distributor shaft. So you can't misalign the magnets.
